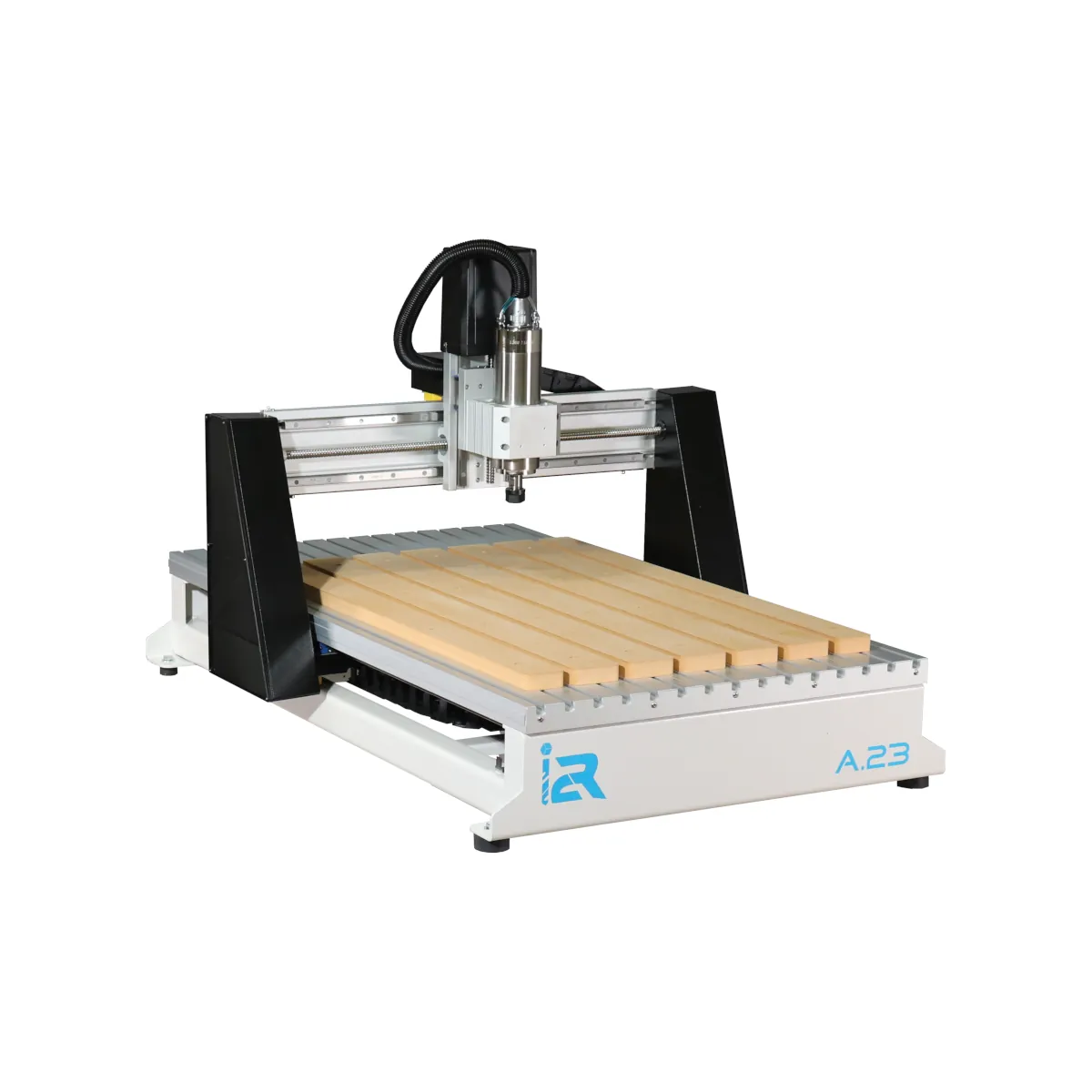

i2R CNC Router – A23 (915 x 610mm)


The i2R A-Series Series CNC router is designed to be an affordable professional CNC router platform in a small desktop format out of the box. Powerful electro spindle performance, and rotary machining capability in a compact industrial machine. Our A-Series CNC routers have a full 150mm Z travel capacity, and a quiet yet powerful 2.2kW / 3HP electro-spindle with integrated liquid cooling system. Each A-Series machine is prewired to accept our optional Rotary Kit. The i2R A-Series CNC routers also offer precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminium table. In addition, the integrated MDF spoil boards promise you all the precision you need, since they can easily be milled flat for a true perpendicular surface to the spindle.

All BG Precision CNC routers available in Australia come factory wired with UCCNC PC based control.

To find out more about UCCNC PC based control, see here: UCCNC

Choose from three footprint options, 610 x 610mm, 610 x 915mm & 610 x 1220mm.

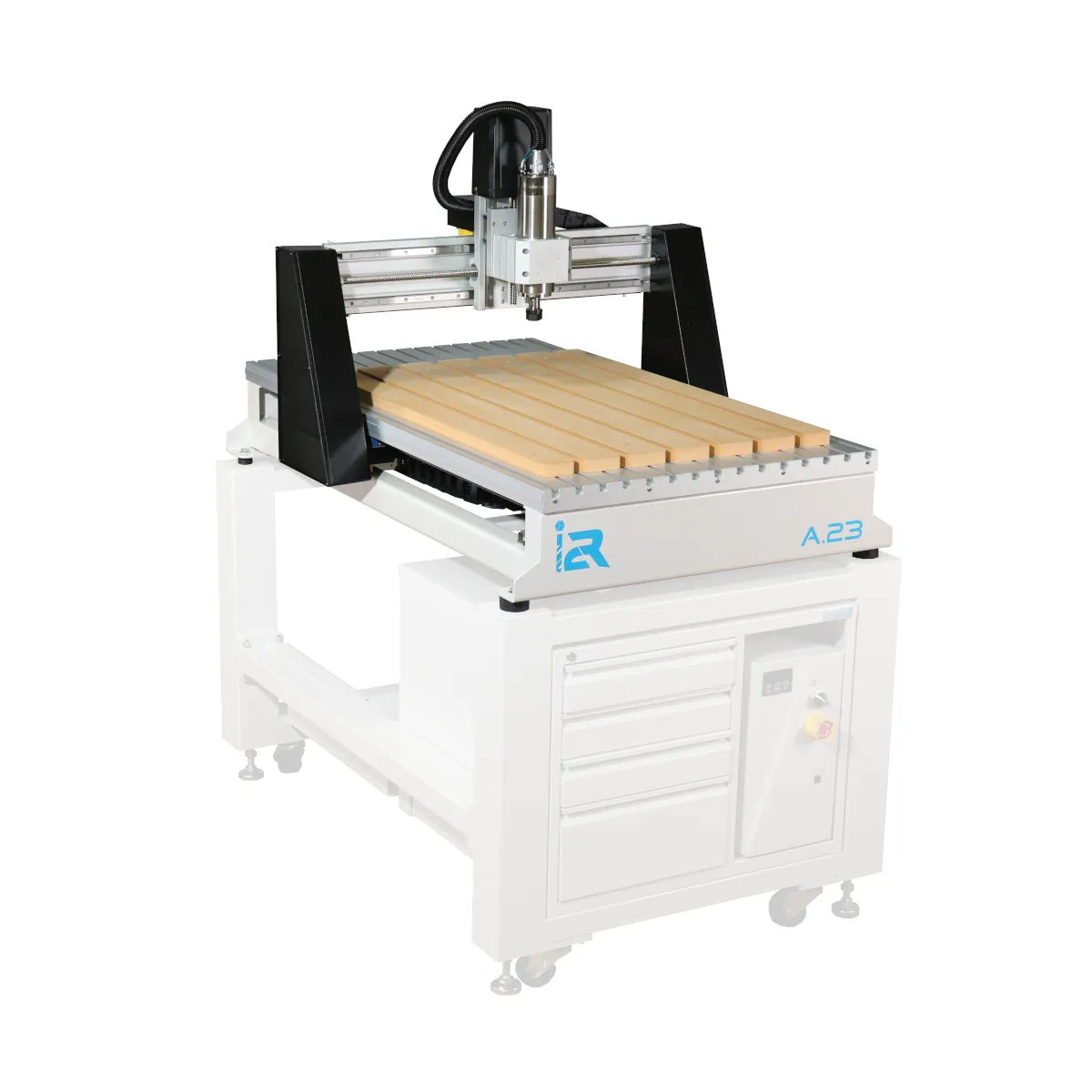

Please note the i2R Stand is an optional accessory. Please see here for all available accessories: i2R A-Series CNC ACCESSORIES

NOTE: We do our best to always keep our products in stock but due to popular demand we do sell out from time to time. If your order is urgent please call to confirm availability.


Axiom CNC Australia





SKU: A23 Category: Tags: , , ,


i2R CNC Router – A23 915 x 610mm

  • UCCNC Industrial 4-axis CNC Controller (optional Rotary Kit)

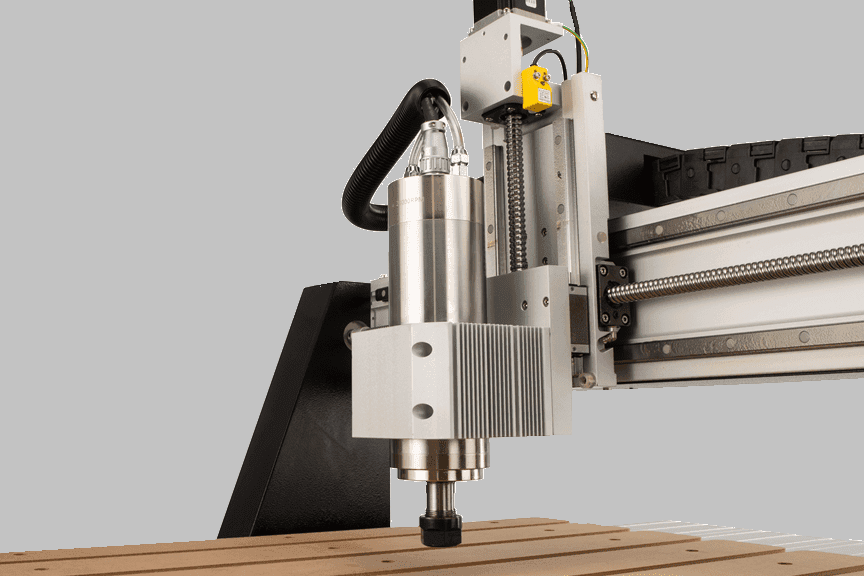

  • 2.2kw/3HP ER20 Electro Spindle
  • 1/4″ & 1/2″ ER20 Collets included
  • Integrated Liquid Cooling System
  • Interlocking Aluminium Table

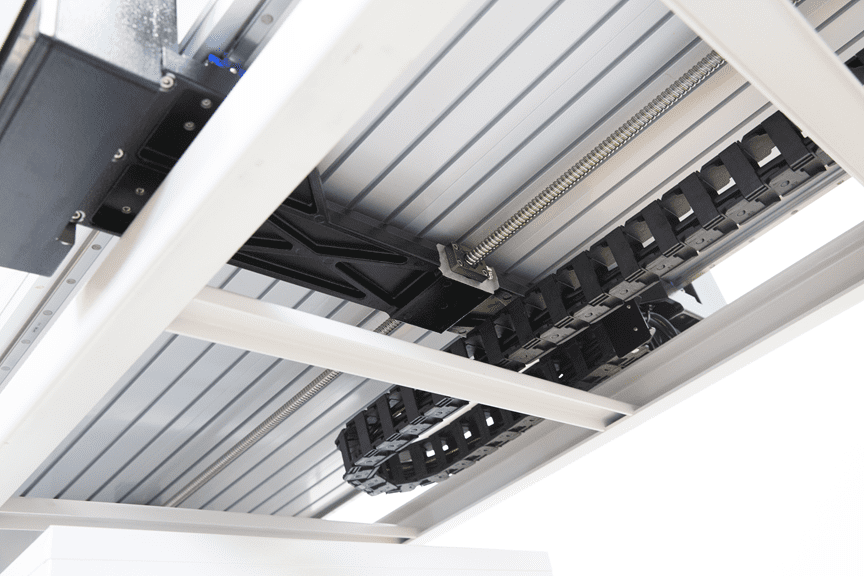

  • Precision Ball Screws on ALL axis
  • Prismatic Guides on ALL axis
  • Auto Tool Touch-off Plate included
  • MDF Spoil board included

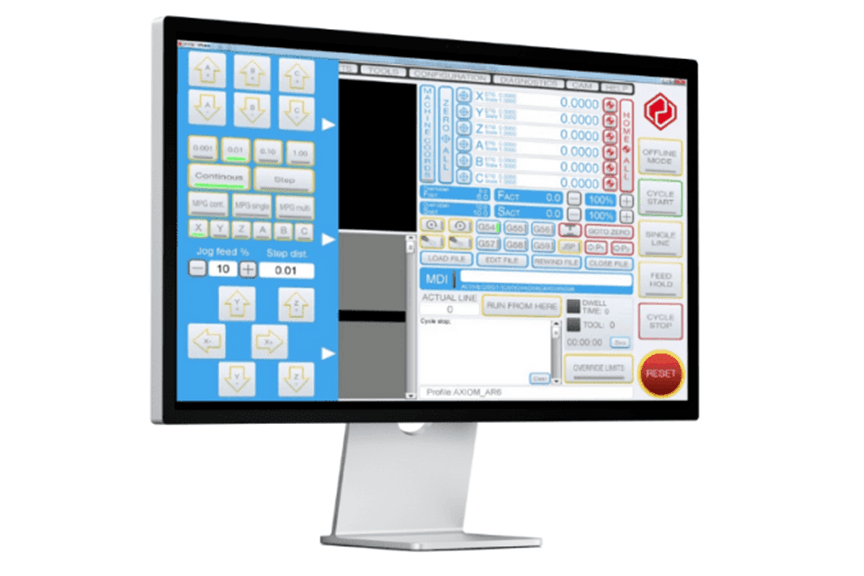

  • UCCNC PC based control software included
  • Machine Working Area: 915 x 610 x 150 mm

Additional information

Weight170 kg
Dimensions140 × 110 × 110 cm
