i2R B-Series CNC ROUTER

i2R B-Series CNC Router

Rarely does the least expensive solution possess best-in-class features…

That changes with the launch of the new i2R B-Series CNC Router. The best technology and components have been selected to build what will surely be the new king of the entry-level CNC market.

Targeted specifically at the first-time CNC user, the new i2R lineup will be supported with a comprehensive manual and video library which are intended to dramatically shorten a new user’s learning curve.

Our i2R CNC machines combine high quality components with precise engineering in order to provide you with an extremely capable power house, entry-level, CNC system.

The black, i2R CNC-UCCNC line is configured to work with the innovative UCCNC technology, allowing for a PC based control system. These machines are available in three sizes. Each one is engineered for precision with prismatic linear guides, a fully recirculating ball screw drive system, and an aluminum T-slot table. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.

If you’re looking into buying your first CNC or looking to upgrade, the i2R lineup has what you need. Put your mind at ease knowing that every BG Precision machine is backed by full customer support and warranty.

i2R B-Series CNC
i2R B-Series CNC Router
i2R B-Series CNC Router
i2R B-Series CNC Router

i2R CNC Routers – Professional and affordable

  • The i2R CNC router systems are built with industrial components and give you one of the most affordable entry level options into the world of CNC routers.
  • We offer the i2R CNC router range with full support on the UCCNC controller. Ethernet connectivity for the utmost reliability
  • The machines are supplied with fully recirculating ballscrews and profiled linear rails makes the i2r the most affordable industrial spec CNC router out there.
  • We have looked for many years for a genuinely cost effective entry level CNC on industry standard components – the i2R encapsulates exactly this!
  • Three phase AC 800W HF motor as standard – Only requires 10amp Single Phase circuit via included VFD
i2R B Series CNC

i2R CNC Advantage

i2R CNC

UCCNC Software PC Controlled

UCCNC is a full G-code CNC controller which allows the machine to be used with CAM packages such as Vectric. It allows you to control the i2R CNC router straight from your computer. From there you can start machining your project.

i2R CNC

Precision Ball Screws

Motion on every axis of every i2R machine is controlled by high-precision ball screws. These ball screws utilize recirculating ball bearings to provide close tolerance and offer unmatched accuracy. Their ability to create low internal friction, while withstanding high thrust loads at high rates of speed, is paramount to the accuracy of each i2R CNC machine.

i2R CNC

Cast Gantry Support

Heavy components travelling at a high rate of speed generate high forces of inertia. The horizontal gantry support (located beneath the table), and the vertical gantry legs take the brunt of that force. Each gravity cast aluminium component is powder coated and engineered to be completely overqualified for their job.

i2R CNC

Z-Axis Automatic Touch Off Tool

Every i2R CNC machine comes standard with an automatic touch off tool for accurately determining your Z zero. Simply slide the tool touch-off device beneath the bit, initiate the ‘Auto Touch-Off’ command on your UCCNC interface, and the bit length will automatically be determined and stored in the UCCNC software.

i2R CNC

High Torque Stepper Motors

Each axis is controlled by a NEMA 23 equivalent high-torque stepper motor. Each fast, device is rated for high duty cycles, and will provide thousands of hours of trouble-free precision.

i2R CNC

High Rigidity Aluminum Frame

Our structural aluminum frame is rigid, and accurate. It supports the weight of your i2R CNC machine with ease. The frame is build around a solid base and offers mounting flanges in each corner to secure your machine to a optional stand, or your work surface.

i2R CNC

Precision Linear Guide Rails

Our linear guide rails utilize recirculating bearings between a prismatic rail and a bearing block. The coefficient of friction on our linear guides is only a small fraction of what is created by traditional round guides, and are able to take loads in all directions. This is how our CNC machines achieve high precision and greatly enhanced moving accuracy.

i2R CNC

Air Cooled Spindle

Every i2R CNC machine comes with a standard VFD Driven, High Frequency air cooled spindle. At 800w, with max speed of 24,0000 RPM, it is silent yet powerful. spindle capable of performing any job.

i2R CNC

Interlocking Aluminum Table

This is a seriously strong table. The massive 30mm thick extruded aluminium table provides a strong, flat surface to support your material. Integrated T-slots allow placement of hold-down clamps in any location, and a sacrificial MDF spoil board ensures that your table will always remain flat and damage free.

i2R CNC Router Models

i2R B22

i2R CNC

i2R B23

i2R CNC

i2R B24

i2R CNC

**** i2R Stand sold separately ****

i2R CNC Router

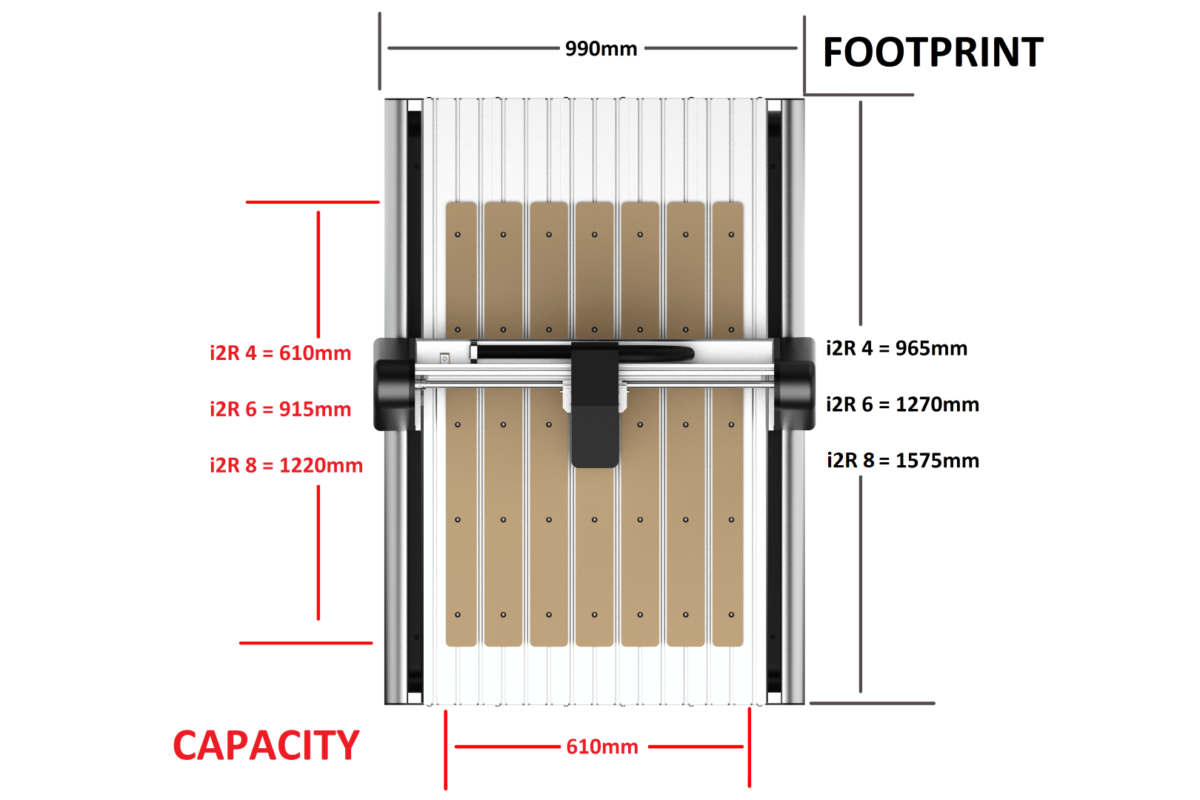

Specifications

X axis travel610mm
Y axis travelB22 = 610mm
B23 = 915mm
B24 = 1220mm
Z axis travel135mm
Table work areaB22 =  939 x 720 mm
B23 =  1245 x 720 mm
B24 = 1549 x 720 mm
Electro Spindle1500W (2HP)

ER 16 Collet (1-10mm)

Spindle speed0-24,000 RPM
Rapid feed rate3500mm/min
Precision Linear GuidewayX/Y/Z
Precision BallScrewX/Y/Z
BallScrew Diameter15mm
Positional Accuracy+/- 0.15mm
Power requirements220V, 50Hz, 10A, 1-Phase
Working TableHigh rigidity Aluminum Extrusion
Gantry bridgeHigh rigidity Aluminum Extrusion
Gantry SupportsAluminum billet machined
Gantry Clearance200mm
Machine BaseAll Welded Steel Frame
Machine DimensionsB22 = 965 x 990 x 711 mm
B23 = 1270 x 990 x 711 mm
B24 = 1575 x 990 x 711 mm
Shipping DimensionsB22 = 1050 x 990 x 520 mm
B23= 1400 x 990 x 520 mm
B24 = 1680 x 990 x 520 mm
Machine WeightB22 = 100Kg
B23 = 130Kg
B24 = 160Kg
Tool Touch OffIncluded
ControllerUCCNC PC Control Software
